If you are using calendars in your project that do not start at 08:00 hrs (8.00am) or 17:00hrs (5.00pm) then your need to understand this topic and how the Hours per day is calculate.
Click here to download a pdf of this article>>>>
The Default start time: and Default end time: are the times that the software uses when a date is entered and a time is not entered. These times should be aligned to the Project calendar and are used in Microsoft Project when:
- Constraints are assigned to tasks when a date is typed into a Start or Finish field, and
- Actual Start or Actual Finish dates are assigned.

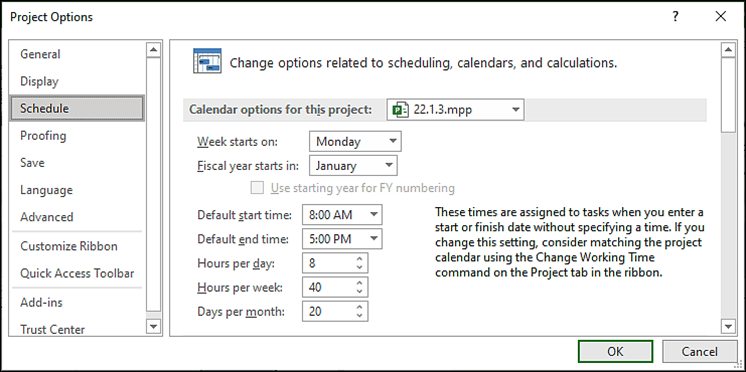

These times are set in the Options, Calendar form which may be accessed by:
- Clicking the Options button from the Change working time form, or
- Selecting the File, Options, Schedule tab, Calendar options for this project:section:
If these times are not aligned then tasks may be displayed one day longer than the duration as per the picture below, where the calendar start time is 8:00am and the Default start time is 9:00am and a 3 -day task spans 4 days:
It is essential to match both the Default start time: and Default end time: with your project calendar’s normal start and finish times. For example, when the Default start time: is set earlier than the calendar normal start time, a task set with a constraint without a time will appear to finish one day later than scheduled. Therefore a one-day task will span two days and a two-day task, three days.
